Using an ESP8266 to
Control 4 LEDs

d. bodnar 8-3-2017

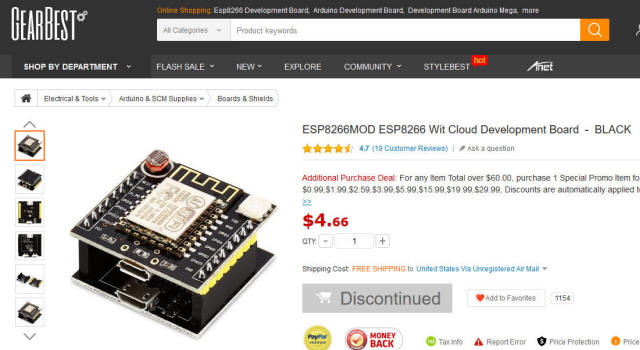

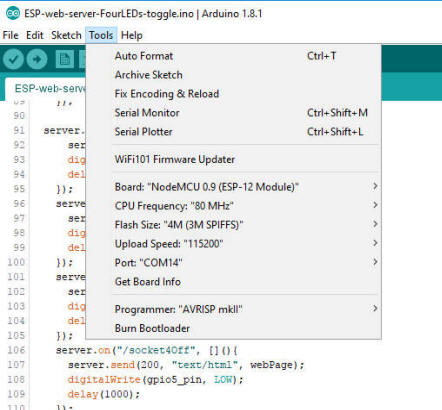

Settings in IDE - For esp8266-12

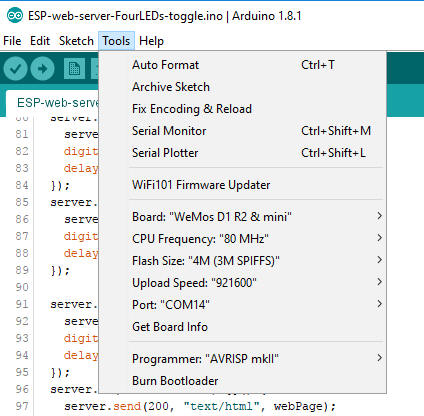

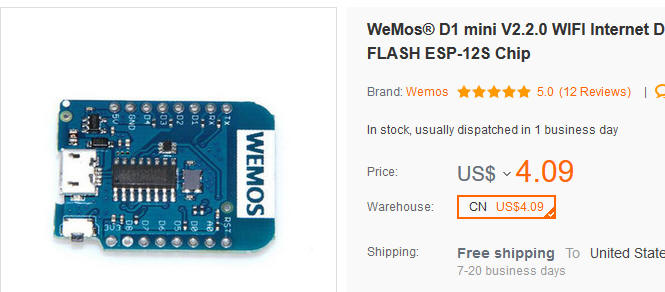

Settings in IDE - For WeMos D1 mini Mini








First working code - file name   ESP-web-server-FourLEDs-toggle.ino
// Note - when used with WeMos D1 mini 0,2,4,5 go to d3, d4, d2, d1
//        on -12F 0,2,4,5 go to d0, d2, d4, d5
/////////STRANGE!



// Revised for 4 LEDs  d. bodnar 8-3-2017


/*********
  Rui Santos
  Complete project details at http://randomnerdtutorials.com
*********/

#include <ESP8266WiFi.h>
#include <WiFiClient.h>
#include <ESP8266WebServer.h>
#include <ESP8266mDNS.h>

MDNSResponder mdns;

// Replace with your network credentials
const char* ssid = "SSID";
const char* password = "PASSWORD";

ESP8266WebServer server(80);

String webPage = "";

int gpio0_pin = 0;
int gpio2_pin = 2;
int gpio4_pin = 4;
int gpio5_pin = 5;

void setup(void) {

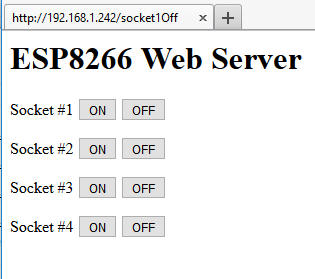

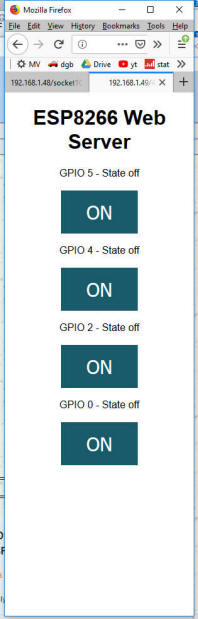

  webPage += "<h1>ESP8266 Web Server 4 LEDs</h1>";
  webPage += "<p>Socket #1 Green <a href=\"socket1On\"><button>ON</button></a>&nbsp;<a href=\"socket1Off\"><button>OFF</button></a></p>";
  webPage += "<p>Socket #2 Blue  <a href=\"socket2On\"><button>ON</button></a>&nbsp;<a href=\"socket2Off\"><button>OFF</button></a></p>";
  webPage += "<p>Socket #3 White <a href=\"socket3On\"><button>ON</button></a>&nbsp;<a href=\"socket3Off\"><button>OFF</button></a></p>";
  webPage += "<p>Socket #4 Red   <a href=\"socket4On\"><button>ON</button></a>&nbsp;<a href=\"socket4Off\"><button>OFF</button></a></p>";

  // preparing GPIOs
  pinMode(gpio0_pin, OUTPUT);
  digitalWrite(gpio0_pin, LOW);
  pinMode(gpio2_pin, OUTPUT);
  digitalWrite(gpio2_pin, LOW);

  pinMode(gpio4_pin, OUTPUT);
  digitalWrite(gpio4_pin, LOW);
  pinMode(gpio5_pin, OUTPUT);
  digitalWrite(gpio5_pin, LOW);

  delay(1000);
  Serial.begin(115200);
  WiFi.begin(ssid, password);
  Serial.println("");

  // Wait for connection
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.print("Connected to ");
  Serial.println(ssid);
  Serial.print("IP address: ");
  Serial.println(WiFi.localIP());

  if (mdns.begin("esp8266", WiFi.localIP())) {
    Serial.println("MDNS responder started");
  }

  server.on("/", []() {
    server.send(200, "text/html", webPage);
  });
  server.on("/socket1On", []() {
    server.send(200, "text/html", webPage);
    digitalWrite(gpio0_pin, HIGH);
    delay(1000);
  });
  server.on("/socket1Off", []() {
    server.send(200, "text/html", webPage);
    digitalWrite(gpio0_pin, LOW);
    delay(1000);
  });
  server.on("/socket2On", []() {
    server.send(200, "text/html", webPage);
    digitalWrite(gpio2_pin, HIGH);
    delay(1000);
  });
  server.on("/socket2Off", []() {
    server.send(200, "text/html", webPage);
    digitalWrite(gpio2_pin, LOW);
    delay(1000);
  });

  server.on("/socket3On", []() {
    server.send(200, "text/html", webPage);
    digitalWrite(gpio4_pin, HIGH);
    delay(1000);
  });
  server.on("/socket3Off", []() {
    server.send(200, "text/html", webPage);
    digitalWrite(gpio4_pin, LOW);
    delay(1000);
  });
  server.on("/socket4On", []() {
    server.send(200, "text/html", webPage);
    digitalWrite(gpio5_pin, HIGH);
    delay(1000);
  });
  server.on("/socket4Off", []() {
    server.send(200, "text/html", webPage);
    digitalWrite(gpio5_pin, LOW);
    delay(1000);
  });




  server.begin();
  Serial.println("HTTP server started");
}

void loop(void) {
  server.handleClient();
}
